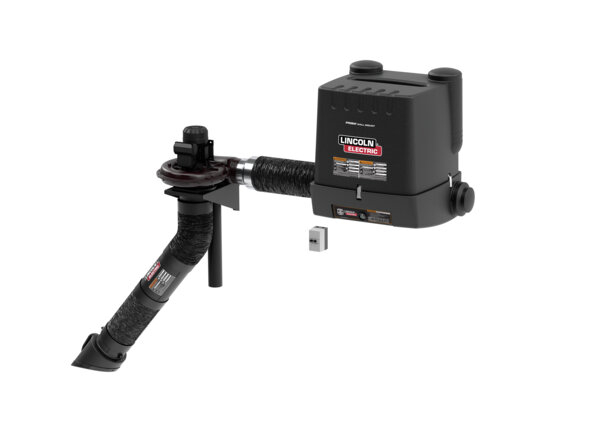

PRISM WALL MOUNT SINGLE ARM TELESCOPIC 7FT COUNTER-WEIGHT FUME EXTRACTION ARM ONE-PAK PKG
The image shown is for representation purposes only and may not reflect the actual product.

Prism® Wall Mount One Pak® MERV 14, Single Telescopic 5-8 ft. Arm, Starter/Overload

K4261-5

Prism Wall Mount One-Pak® with MERV 14 filter comes with a Prism® 2400 stationary fan, a starter/overload switch, and a telescopic 5-8 ft. counter-weight arm. Capable of providing 735 SCFM in single-arm configuration.

Input

Input Input

Model

Select Model

  • Prism Wall Mount w/MERV 14 Filter Single Arm Base Unit

    Prism Wall Mount w/MERV 14 Filter Single Arm Base Unit

    Prism Wall Mount w/MERV 14 Filter Single Arm Base Unit

    K1654-4

  • Prism® Wall Mount w/MERV 16 Filter Single Arm Welding Extractor Base Unit

    Prism® Wall Mount w/MERV 16 Filter Single Arm Welding Extractor Base Unit

    Prism® Wall Mount w/MERV 16 Filter Single Arm Welding Extractor Base Unit

    K1654-6

  • Prism® Wall Mount w/ HEPA Filter Single Arm Welding Extractor Base Unit

    Prism® Wall Mount w/ HEPA Filter Single Arm Welding Extractor Base Unit

    Prism® Wall Mount w/ HEPA Filter Single Arm Welding Extractor Base Unit

    K1654-10

  • Single 10 ft. Flexible Arm, Starter/ Overload Switch

    Single 10 ft. Flexible Arm, Starter/ Overload Switch

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, a starter/ overload switch, and a flexible 10 ft. arm. Capable of providing 735 SCFM in single arm configuration.

    K4261-2

  • Single 13 ft. Flexible Arm, Starter/ Overload Switch

    Single 13 ft. Flexible Arm, Starter/ Overload Switch

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a flexible 13 ft. arm. capable of providing 735 SCFM in single arm configuration.

    K4261-3

  • Single 5-8 ft. Telescopic Arm, Starter/ Overload Switch

    Single 5-8 ft. Telescopic Arm, Starter/ Overload Switch

    Prism Wall Mount One-Pak® with MERV 14 filter comes with a Prism® 2400 stationary fan, a starter/overload switch, and a telescopic 5-8 ft. counter-weight arm. Capable of providing 735 SCFM in single-arm configuration.

    K4261-5

  • Single 10 ft. Flexible Arm, Arc Sensor/ Lamp Kit

    Single 10 ft. Flexible Arm, Arc Sensor/ Lamp Kit

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a flexible 10 ft. arm. Capable of providing 735 SCFM in single arm configuration.

    K4261-6

  • Single 13 ft. Flexible Arm, Arc Sensor

    Single 13 ft. Flexible Arm, Arc Sensor

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a flexible 13 ft. arm. Capable of providing 735 SCFM in single arm configuration.

    K4261-14

  • Single 4-6 ft. Telescopic Arm, Starter/ Overload Switch

    Single 4-6 ft. Telescopic Arm, Starter/ Overload Switch

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, a starter/overload switch, and a telescopic 4-6 ft. counter-weight arm. Capable of providing 735 SCFM in single arm configuration.

    K4261-15

  • Single 4-6 ft. Telescopic Arm, Arc Sensor

    Single 4-6 ft. Telescopic Arm, Arc Sensor

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a telescopic 4-6 ft. counter-weight arm. Capable of providing 735 SCFM in single arm configuration.

    K4261-16

  • Single 5-8 ft. Telescopic Arm, Arc Sensor

    Single 5-8 ft. Telescopic Arm, Arc Sensor

    Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a telescopic 5-8 ft. counter-weight arm. Capable of providing 735 SCFM in single arm configuration.

    K4261-17

MSRP

USD $4,469.92/EA

Buy Now

DETAILS

FUMES DON’T STAND A CHANCE

The Prism® Wall Mount units are stationary, wall-mounted low vacuum systems intended for light to medium duty extraction and filtration of welding fume. Ideal for job shops, welding schools and maintenance departments, the Prism® Wall Mount unit is designed for facilities with fixed workstations and limited floor space. The One-Paks® help simplify the selection process.

Features

  • Single Arm Configuration - Telescopic 5-8 ft. Counter-Weight Extraction Arm capable of moving in and out of the normal position
  • Generous Airflow - Comes with Prism® 2400 Fan (115V, 1 Phase, 60 Hz, 1 HP) with self-cleaning concave blades and provides a 735 CFM with Prism® Flexible 13 ft. Extraction Arm
  • Disposable MERV 14 Filter - 3D pleated filter structure with 538 ft² (50 m²) capacity
  • Spark Arrestor - Functions as a pre-filter for larger-sized particulate
  • Starter/ Overload Switch - Provides simple on/off operation when an Arc Sensor/ Lamp Kit is NOT used

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Service Information

What's Included

Documentation

You May Also Need

Starter Overload Switch SF4200 Stationary Fan (230V)

Starter Overload Switch for 230V Prism® 4200 2 HP Fan

K1494-10
SF2400 Starter Overload Fan Switch

Starter Overload Switch for 115V Prism® 2400 1-HP Fan

K1494-2
SF2400 Starter Overload Fan Switch

Starter Overload Switch for 230V Prism® 2400 1 HP Fan

K1494-3
Air Exhaust Silencer

Air Exhaust Silencer

K1534-2
SF 4200 Fume Extraction Fan

Prism® 4200 2HP Fan (230V)

K1656-4
LFA 2.0 Fume Extraction Arm with Statiflex 2400 Fan

Prism® Wall Mounting Bracket for 10 and 13 FT 2400 1 HP Fan

K1657-1
Wall Mounting Bracket

Prism® 2400 1 HP Fan Wall Mounting Bracket for Flexible 7 FT, Telescopic 5 Ft, Flexible 13 FT low Ceiling Arms

K1657-2
Lamp Kit and Arc Sensor

Arc Sensor/Lamp Kit for 230V Prism® 4200 2 HP Fan

K1669-10

Specifications

General

Product Type Prism
Style Wall Mount
Base Number (1) K1654-4 Prism Wall Mount Base Unit - Disposable Filter
Motor Power (HP) 1 HP
Input Hertz 60 Hz
Input Phase 1 Phase
Input Voltage 115V
Air Flow 735 CFM
Standard Arm Dimensions 5-8 ft
Arm Type Telescopic
Filter Area sq ft (sq m) [object Object]
Filter Type (MERV Rating) MERV 14 Cellulose
High Vac or Low Vac Low Vac

Product Weights & Dimensions

Dimensions (H x W x D) 36 in x 32 in x 28 in (900 mm x 810 mm x 730 mm)
Net Weight 90 lbs (41 kg)

Application

Typical Application Automotive
General Fabrication
Heavy Fabrication
Maintenance & Repair
Repair Welding
Robotics
Shipbuilding
Structural Fabrication

Warranty

Warranty 3 Years
