Metalshield Consumables

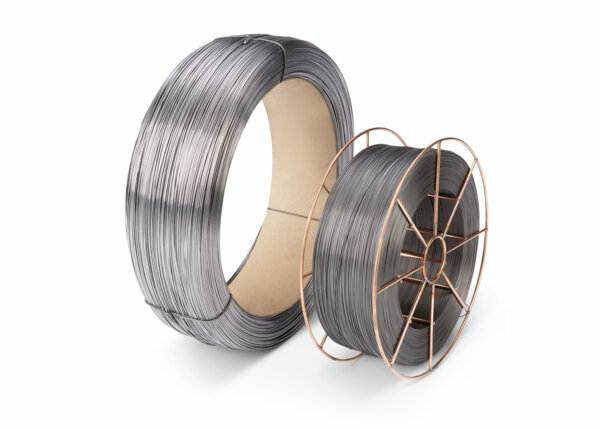

The image shown is for representation purposes only and may not reflect the actual product.

Diameters / Packaging

Diameters
 33 lb Spool
 60 lb Coil
 600 lb Accu-Trak® Drum
0.045 in (1.1 mm) ED030592 ED028526
0.052 in (1.3 mm) ED028527
1/16 in (1.6 mm) ED028528 ED028450

Metalshield® MC-710XL®

Metal-Cored Gas-Shielded (GMAW-C)

CLASSIFICATIONS:
AWS E70C-6M H8

Metalshield® MC-710XL® from Lincoln Electric tolerates moderate amounts of surface contaminants.

Diameter

Select Diameter

  • 0.045 in (1.1 mm)
  • 0.052 in (1.3 mm)
  • 1/16 in (1.6 mm)

Package

Select Package

  • 33 lb Spool
  • 60 lb Coil
  • 600 lb Accu-Trak® Drum
Buy Now

DETAILS

A mild steel, metal-cored wire designed for superior arc performance in high deposition, high travel speed applications requiring minimal amounts of spatter.

Features

  • High column strength for excellent feedability
  • Tolerates moderate amounts of surface contaminants

Typical Applications

  • Automotive
  • Structural fabrication
  • Shipbuilding
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • 75-95% Argon / Balance CO2; Flow Rate: 40-60 CFH

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Service Information

Documentation

You May Also Need

Magnum Pro 250 MIG Welding gun

Magnum® PRO 350 Welding Guns

K2652-2-10-45
Magnum Pro 250 MIG Welding gun

Magnum® PRO 450 Welding Guns

K2653-2-10-45
50lb Coil Ultracore 70C

Metalshield® MC-710XL®

ED028528
Accu-Trak Drum

SuperArc® L-56®

ED029084
Accu-Trak Drum

Metalshield® MC-6®

ED030947

SuperArc® L-50®

ED032846
500 Accu-Pak box, 1000 Accu-Pak Box

SuperArc® L-56®

ED032851

SuperArc® L-50®

ED032903

BEFORE USE, READ AND UNDERSTAND THE SAFETY DATA SHEET (SDS) FOR THIS PRODUCT AND SPECIFIC INFORMATION PRINTED ON THE PRODUCT CONTAINER. SDS Search page

See test result disclaimer

CONFORMANCE

CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5 E70C-6M-H8, E70C-G-H8, E70T15-M20A2-CS1-H8, E70T15-M21A2-CS1-H8
CWB/CSA CWB/CSA E491C-6M-H8, E491T15-M20A3-CS1-H8, E491T15-M21A3-CS1-H8

MECHANICAL PROPERTIES

Classification Shielding Gas Yield Strength @ 0.2% Offset
MPa (ksi) 		Tensile Strength
MPa (ksi) 		Elongation
% 		Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F)
E70C-6M-H8 Requirement 75% Ar, 25% CO2 400 (58) min. 480 (70) min. 22 min. 27 (20) min.
E70T15-M20A2-CS1-H8 Requirement 75% Ar, 25% CO2 400 (58) min. 490-660 (70-95) 22 min. 27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2 450-510 (65-75) 510-590 (75-85) 24-28 54-149 (40-110)
Typical Result, As-welded 90% Ar, 10% CO2 480-550 (70-80) 550-620 (80-90) 24-28 54-149 (40-110)

DEPOSIT COMPOSITION

Classification Shielding Gas %C %Mn %Si %S %P %Cu %Ni %Cr %Mo %V %ni+%C+%Mo+%V Diffusible Hydrogen
mL/100g Weld Metal
E70C-6M-8 Requirement 0.12 max. 1.75 max. 0.90 max. 0.03 max. 0.03 max. 0.50 max. 0.50 max. 0.20 max. 0.30 max. 0.08 max. 0.5 max. 8.0 max.
E70T15-M20A2-CS1-H8 Requirement 0.12 max. 1.75 max. 0.90 max. 0.030 max. 0.030 max. 0.35 max. 0.50 max. 0.20 max. 0.30 max. 0.08 max. 0.5 max. 8 max.
Typical Result 75% Ar, 25% CO2 0.02-0.05 1.20-1.65 0.50-0.75 0.01-0.02 0.01-0.02 0.01-0.05 0.02-0.04 0.01-0.04 0.01-0.02 0.01-0.02 0.05-0.10 6-8
Typical Result 90% Ar, 10% CO2 0.02-0.05 1.40-1.85 0.50-0.90 0.01-0.02 0.01-0.02 0.01-0.05 0.02-0.05 0.01-0.04 0.01-0.02 0.01-0.02 0.05-0.10 6-8

TYPICAL OPERATING PROCEDURES

Diameter in (mm) Polarity Shielding Gas CTWD(1) mm (in) Wire Feed Speed m/min (in/min) Voltage (volts) Current (amps) Melt-Off Rate kg/hr (lb/hr) Deposition Rate kg/hr (lb/hr) Efficiency (%)
0.045 (1.1) DC+ 90% Ar, 10% CO2 19-25 (3/4-1) 5.1 (200) 24-25 165 2.3 (5.1) 2.2 (4.8) 94
0.045 (1.1) DC+ 90% Ar, 10% CO2 19-25 (3/4-1) 6.4 (250) 25-26 200 2.9 (6.4) 2.8 (6.1) 95
0.045 (1.1) DC+ 90% Ar, 10% CO2 19-25 (3/4-1) 8.9 (350) 28-29 230 4.1 (9.0) 3.9 (8.6) 95
0.045 (1.1) DC+ 90% Ar, 10% CO2 19-25 (3/4-1) 11.4 (450) 30-31 310 5.2 (11.5) 5.0 (11.1) 96
0.045 (1.1) DC+ 90% Ar, 10% CO2 19-25 (3/4-1) 14.0 (550) 32-33 355 6.4 (14.1) 6.2 (13.7) 97
0.045 (1.1) DC+ 90% Ar, 10% CO2 19-25 (3/4-1) 16.5 (650) 35-36 385 7.6 (16.7) 7.4 (16.2) 97
0.052 (1.3) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 4.4 (175) 23-35 195 2.7 (6.0) 2.5 (5.5) 92
0.052 (1.3) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 6.4 (250) 25-27 260 3.9 (8.6) 3.6 (8.0) 93
0.052 (1.3) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 8.9 (350) 28-30 330 5.4 (11.9) 5.1 (11.2) 94
0.052 (1.3) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 11.4 (450) 31-33 390 7.0 (15.4) 6.6 (14.5) 94
0.052 (1.3) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 14.0 (550) 34-36 430 8.5 (18.8) 8.1 (17.8) 95
1/16 (1.6) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 3.8 (150) 24-26 235 3.1 (6.9) 2.9 (6.5) 94
1/16 (1.6) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 6.4 (250) 28-30 330 5.2 (11.4) 4.9 (10.8) 95
1/16 (1.6) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 8.9 (350) 33-35 410 7.4 (16.3) 7.0 (15.5) 95
1/16 (1.6) DC+ 90% Ar, 10% CO2 25-32 (1-1 1/4) 11.4 (450) 35-37 460 9.4 (20.7) 9.0 (19.8) 96

NOTES

Name
⁽¹⁾ To estimate ESO, subtract 3/16 in (4.8 mm) from CTWD.
