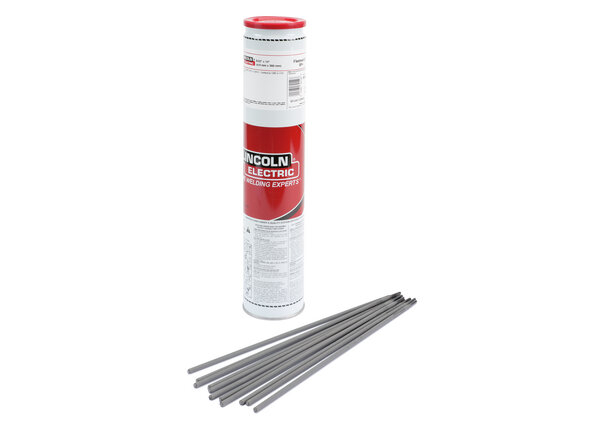

Fleetweld 5P+ 14 Stick Electrode in 10 lb can"
The image shown is for representation purposes only and may not reflect the actual product.

Diámetros / Embalaje

Diámetros
mm 		(3) 10 lb Easy Open Can
 50 lb Easy Open Can
1/8 x 14 in (3.2 x 350 mm) ED032565 ED010278
3/16 x 14 in (4.8 x 350 mm) ED010281
3/32 x 12 in (2.4 x 300 mm) ED032564 ED010283
5/32 x 14 in (4.0 x 350 mm) ED032566 ED010285

Fleetweld® 5P+

Soldadura de Arco Metálico Protegido (SMAW) | ED032564

CLASIFICACIONES:
E6010

AWS A5.1/A5.1M: 2004 E6010 ASME SFA-A5.1:E6010 ABS:E6010 CWB/CSA W48-06:E4310 TUV:EN ISO 2560-A: E 42 3 C25

Diámetro

Seleccionar diámetro

  • 1/8 x 14 in (3.2 x 350 mm)
  • 3/16 x 14 in (4.8 x 350 mm)
  • 3/32 x 12 in (2.4 x 300 mm)
  • 5/32 x 14 in (4.0 x 350 mm)

Paquete

Desencadenar

  • (3) 10 lb Easy Open Can
  • 50 lb Easy Open Can

Detalles

Mild steel stick electrode standard in the pipe welding industry for root pass

Características

  • High operator appeal and control
  • Easy slag removal
  • Cross country and in-plant pipe welding

Servicio de información

Documentación

También puede necesitar

50 lb Can of Lincoln Electric Stick Electrodes

Fleetweld® 5P+

ED010278
50 lb Can of Lincoln Electric Stick Electrodes

Fleetweld® 5P+

ED010281
50 lb Can of Lincoln Electric Stick Electrodes

FLEETWELD® 5P+®

ED010283
Fleetweld 5P+ 14 Stick Electrode in 10 lb can"

Fleetweld® 5P+

ED032565
Fleetweld 5P+ 14 Stick Electrode in 10 lb can"

Fleetweld® 5P+

ED032566
K2394-1-Stick Electrode Holder & Cable Assembly Kit

Stick Electrode Holder and Cable Assembly (Twist Mate™)

K2394-1
K875 Accessory Kit

Accessory Kit - 150 Amp

K875
Heavy Duty Leather Welding Jacket

Chamarra para Soldador, Carnaza de Uso Rudo - Grande (L) - K2989-L

K2989-L

ANTES DE USARLO, LEA Y COMPRENDA LA HOJA DE DATOS DE SEGURIDAD (SDS) DE ESTE PRODUCTO Y LA INFORMACIÓN ESPECÍFICA IMPRESA EN EL ENVASE DEL PRODUCTO. Página de Búsqueda SDS

Ver los resultados de la prueba de limitación de responsabilidad

CONFORMANCE

CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.1 E6010
ISO ISO 2560-A E 42 3 C 2 5
ABS AWS A5.1 E6010
CWB CSA W48 E4310
DNV-GL DNV - 2.9 3

MECHANICAL PROPERTIES

Classification Yield Strength @ 0.2% Offset
MPa (ksi) 		Tensile Strength
MPa (ksi) 		Elongation
% 		Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F) 		Hardness Rockwell B
E6010 Requirement 330 (48) min. 410 (60) min. 22 min. 27 (20) min.
Typical Result, As-welded 430-480 (62-69) 530-580 (76-85) 23-31 51-122 (38-90) 82-91

DEPOSIT COMPOSITION

Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V
E6010 Requirement 0.20 max. 0.20 max. 1.20 max. 0.30 max. 0.30 max. 1.00 max. 0.08 max.
Typical Result 0.12-0.16 0.06 max. 0.50-0.67 0.02 0.07 max. 0.007-0.012 0.004-0.011 0.14-0.25 0.01

TYPICAL OPERATING PROCEDURES

Diameter Polarity⁽¹⁾ Current
Amps
3/32 in (2.4 mm) DC+ 50-85
3/32 in (2.4 mm) DC- 50-85
1/8 in (3.2 mm) DC+ 75-135
1/8 in (3.2 mm) DC- 75-135
5/32 in (4.0 mm) DC+ 100-175
5/32 in (4.0 mm) DC- 100-175
3/16 in (4.8 mm) DC+ 140-225
3/16 in (4.8 mm) DC- –

NOTES

Note
⁽¹⁾ Preferred polarity is listed first.
