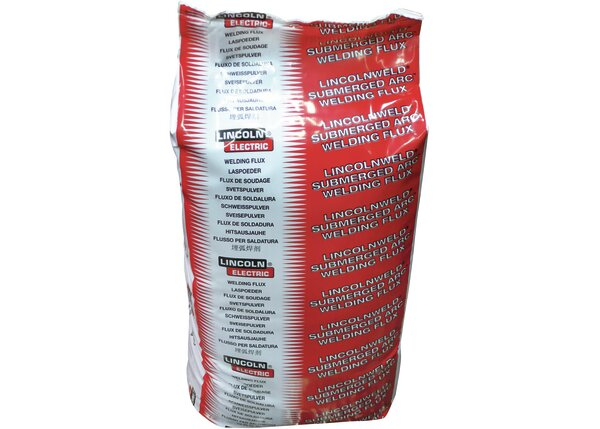

The image shown is for representation purposes only and may not reflect the actual product.
Diámetros / Embalaje
|
Diámetros mm |
25 KG PE BAG |
50 lb Bag |
|---|---|---|
| Flux | BRE00860S25 | ED019589 |
Detalles
Lincolnweld 860 neutral submerged arc flux is designed with excellent operating characteristics in a variety of general welding applications. Capable of producing weld deposits with impact toughness exceeding 27 J (20 ft•lbf) at -40°C (-40°F) with Lincolnweld L-61.
Características
- Industry standard for submerged arc welding applications
- Excellent operating characteristics in a variety of general welding applications.
- Capable of producing weld deposits with impact toughness exceeding 27 J at -40degC with L-61 wire
Servicio de información
ANTES DE USARLO, LEA Y COMPRENDA LA HOJA DE DATOS DE SEGURIDAD (SDS) DE ESTE PRODUCTO Y LA INFORMACIÓN ESPECÍFICA IMPRESA EN EL ENVASE DEL PRODUCTO. Página de Búsqueda SDS
Ver los resultados de la prueba de limitación de responsabilidad
MECHANICAL PROPERTIES
| Wire | Classification | Postweld Heat Treatment |
Yield Strength @ 0.2% Offset
MPa (ksi) |
Tensile Strength
MPa (ksi) |
Elongation
% |
Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F) |
Charpy V-Notch
J (ft-lbs) @ -40°C (-40°F) |
Charpy V-Notch
J (ft-lbs) @ -45°C (-50°F) |
Charpy V-Notch
J (ft-lbs) @ -50°C (-60°F) |
|---|---|---|---|---|---|---|---|---|---|
| Lincolnweld® L-50® | F7A2-EM13K-H4 | As-welded | 420 (61) | 540 (78) | 30 | 88 (65) | |||
| Lincolnweld® L-56® | F7A2-EH11K-H4 | As-welded | 500 (72) | 610 (88) | 28 | 75 (55) | |||
| Lincolnweld® L-56® | F7P2-EH11K-H4 | 1 hour @ 620°C (1150°F) | 430 (62) | 560 (81) | 31 | 96 (71) | |||
| Lincolnweld® L-60 | F6A2-EL12-H4 | As-welded | 370 (54) | 440 (64) | 33 | 198 (146) | |||
| Lincolnweld® L-61® | F6P5-EM12K-H8 | 1 hour @ 620°C (1150°F) | 370 (53) | 480 (69) | 35 | 148 (109) | |||
| Lincolnweld® L-61® | F7A4-EM12K-H8 | As-welded | 420 (61) | 510 (74) | 30 | 145 (107) | |||
| Lincolnweld® L-70 | F7A2-EA1-A2-H4 | As-welded | 470 (68) | 560 (81) | 28 | 96 (71) | |||
| Lincolnweld® L-70 | F7P2-EA1-A2-H4 | 1 hour @ 620°C (1150°F) | 440 (64) | 540 (78) | 29 | 94 (69) | |||
| Lincolnweld® LA-71 | F7A2-EM14K-H4 | As-welded | 460 (67) | 560 (81) | 30 | 145 (107) | |||
| Lincolnweld® LA-71 | F7P2-EM14K-H4 | 1 hour @ 620°C (1150°F) | 420 (61) | 540 (78) | 30 | 123 (91) | |||
| Lincolnweld® LA-75 | F7A2-ENi1K-Ni1-H4 | As-welded | 470 (68) | 570 (82) | 29 | 115 (85) | |||
| Lincolnweld® LA-75 | F7P2-ENi1K-Ni1-H4 | 1 hour @ 620°C (1150°F) | 410 (60) | 530 (77) | 31 | 123 (91) | |||
| Lincolnweld® LA-81 (LNS 140TB) | F9TA6G-EA2TiB | As-welded | 610 (88) | 670 (97) | 27 | 33 (24) | |||
| Lincolnweld® LA-85 (LNS 165) | F8A4-ENi5-Ni5-H4 | As-welded | 490 (71) | 580 (84) | 27 | 119 (88) | |||
| Lincolnweld® L-S3 (LNS133U,L50M) | F7A2-EH12K-H4 | As-welded | 420 (61) | 520 (75) | 30 | 138 (102) | |||
| Pipeliner® LA-85 | F8A4-ENi5-Ni5-H4 | As-welded | 490 (71) | 580 (84) | 27 | 119 (88) |
DEPOSIT COMPOSITION
| Wire | Classification | %B | %C | %Cr | %Cu | %Mn | %Mo | %Ni | %P | %S | %Si | %Ti | %Ti+V+Zr |
Diffusible Hydrogen
mL/100g Weld Metal |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lincolnweld® L-50® | F7A2-EM13K-H4 | 0.04 | 0.09 | 1.74 | 0.014 | 0.009 | 0.54 | 3 | ||||||
| Lincolnweld® L-56® | F7A2-EH11K-H4 | 0.05 | 0.09 | 2.12 | 0.018 | 0.004 | 0.86 | 2 | ||||||
| Lincolnweld® L-56® | F7P2-EH11K-H4 | 0.05 | 0.09 | 2.12 | 0.018 | 0.040 | 0.86 | 2 | ||||||
| Lincolnweld® L-60 | F6A2-EL12-H4 | 0.04 | 0.07 | 1.04 | 0.016 | 0.010 | 0.25 | 4 | ||||||
| Lincolnweld® L-61® | F6P5-EM12K-H8 | 0.05 | 0.06 | 1.52 | 0.018 | 0.010 | 0.36 | 2 | ||||||
| Lincolnweld® L-61® | F7A4-EM12K-H8 | 0.05 | 0.06 | 1.52 | 0.018 | 0.009 | 0.35 | 2 | ||||||
| Lincolnweld® L-70 | F7A2-EA1-A2-H4 | 0.04 | 0.08 | 1.31 | 0.52 | 0.015 | 0.009 | 0.28 | 3 | |||||
| Lincolnweld® L-70 | F7P2-EA1-A2-H4 | 0.05 | 0.08 | 1.28 | 0.53 | 0.015 | 0.009 | 0.26 | 3 | |||||
| Lincolnweld® LA-71 | F7A2-EM14K-H4 | 0.05 | 0.13 | 1.76 | 0.016 | 0.008 | 0.57 | 0.020 | 3 | |||||
| Lincolnweld® LA-71 | F7P2-EM14K-H4 | 0.05 | 0.13 | 1.74 | 0.016 | 0.009 | 0.06 | 0.020 | 3 | |||||
| Lincolnweld® LA-75 | F7A2-ENi1K-Ni1-H4 | 0.05 | 0.03 | 0.10 | 1.64 | 0.01 | 0.86 | 0.014 | 0.009 | 0.63 | 0.01 | 2 | ||
| Lincolnweld® LA-75 | F7P2-ENi1K-Ni1-H4 | 0.05 | 0.03 | 0.10 | 1.68 | 0.00 | 0.86 | 0.014 | 0.010 | 0.61 | 0.01 | 2 | ||
| Lincolnweld® LA-81 (LNS 140TB) | F9TA6G-EA2TiB | 0.0037 | 0.06 | 0.15 | 1.35 | 0.21 | 0.011 | 0.004 | 0.31 | 0.032 | ||||
| Lincolnweld® LA-85 (LNS 165) | F8A4-ENi5-Ni5-H4 | 0.04 | 0.08 | 1.58 | 0.22 | 0.87 | 0.020 | 0.003 | 0.30 | 3 | ||||
| Lincolnweld® L-S3 (LNS133U,L50M) | F7A2-EH12K-H4 | 0.05 | 0.10 | 1.77 | 0.015 | 0.009 | 0.45 | 3 | ||||||
| Pipeliner® LA-85 | F8A4-ENi5-Ni5-H4 | 0.04 | 0.08 | 1.58 | 0.22 | 0.87 | 0.020 | 0.003 | 0.30 | 3 |
FLUX COMPOSITION
| Classification | %Al2O3 | %CaF2 | %CaO | %MgO | %MnO | %Na2O | %SiO2 | %TiO2 | %ZrO2 | %Metal Alloys |
|---|---|---|---|---|---|---|---|---|---|---|
| Typical Result | 30 | 13 | 2 | 18 | 11 | 2 | 19 | 2 | 0 | 3 |
