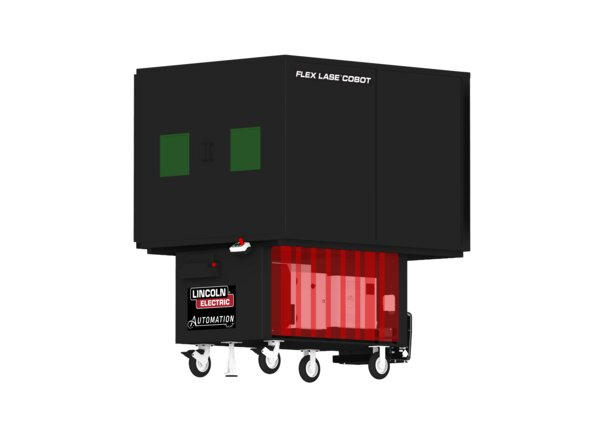

Flex Lase™ cobots combine the power of Flex Lase laser systems and collaborative robotics to offer automated solutions to high-mix manufacturing processes. The carts are designed to move anywhere you need to weld with a laser-enclosure built on top of the cart, providing a Class 1 laser to your operations! It's the game-changing solution you need to level up your laser welding and your business!
Features
- Flex Lase 20 Laser Welding System - The easy-to-use Flex Lase™ laser system puts power, speed and precision within your reach. With 2kW of laser output power and a robust package, operators can tackle high-precision welding applications with faster travel speeds – up to 4x faster than TIG – helping to improve productivity without sacrificing quality.
Specifications:
» AC 230V Single Phase, 50/60 Hz
» 2000W Rated Output
» 26A Input Current @ Rated Output
» Output Range: 200 – 2000W
» Equipment mounted to all-in-one cart/enclosure
- Flex Feed® 25L Wire Feeder - A wire feeder based on the robust design of the Power Feed 25M. The Flex Feed 25L comes with a market-leading 5-Year warranty.
- CRX 10iA/L w/ R-30iB Plus Mini Controller - Designed with sensitive contact detection to allow for safe operation alongside people in a variety of industrial and manufacturing jobs. With manual-guided teaching, the ease of programming makes the CRX the perfect solution for manufacturers with little to no robotic experience.
Includes:
» CRX 10iA 6 Axis Robot
» R-30iB Plus Controller
» Color TFT backlit LCD screen Teach Pendant
Specifications:
» Reach: 1418 mm (55.8”)
» Repeatability: ±0.05 mm
» Payload Capacity: 10 kg
» AC 100-120V, AC 200-240V Single Phase +10% -15%
» 50/60 Hz +/-1 Hz

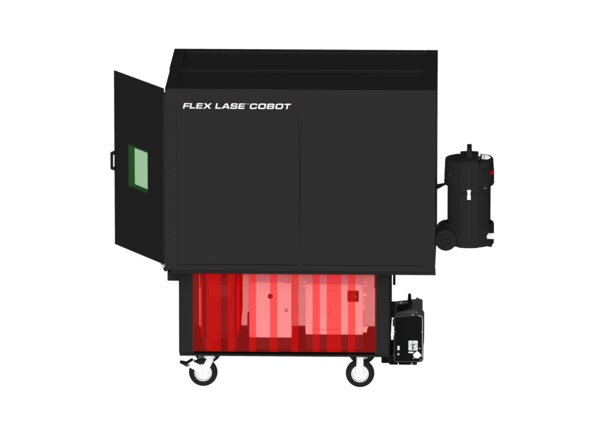

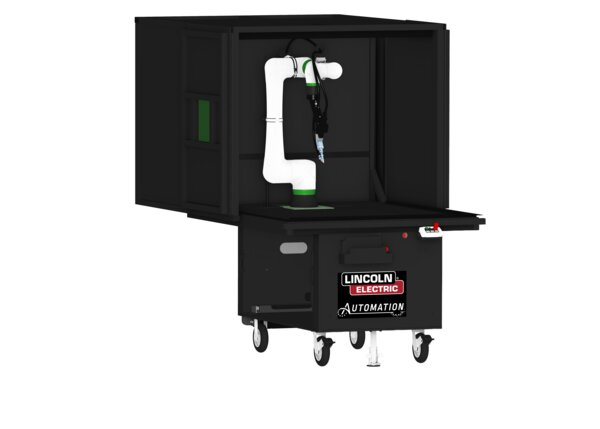

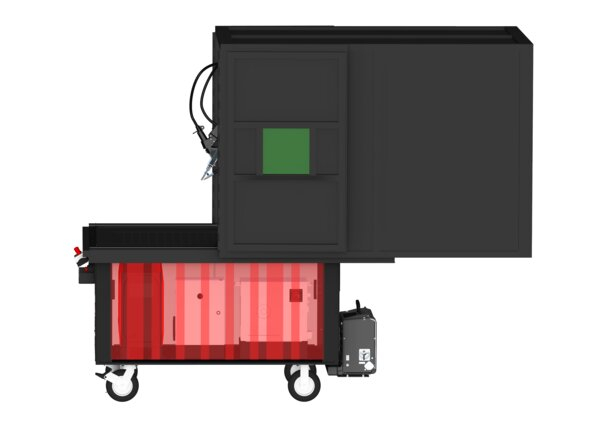

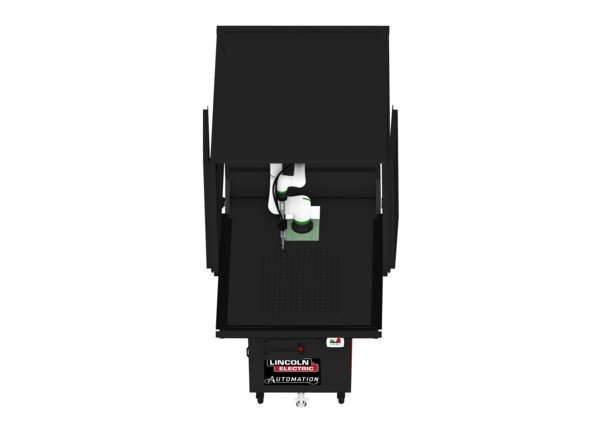

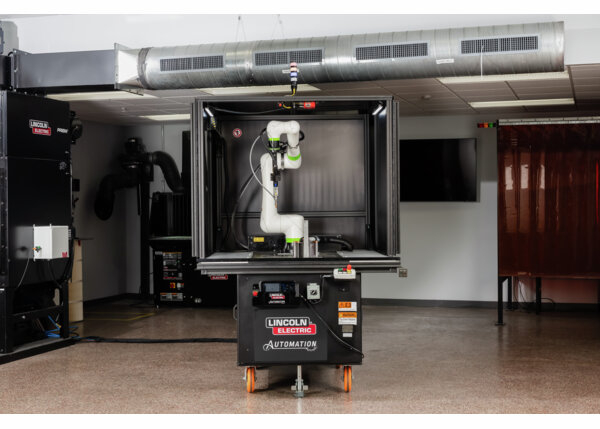

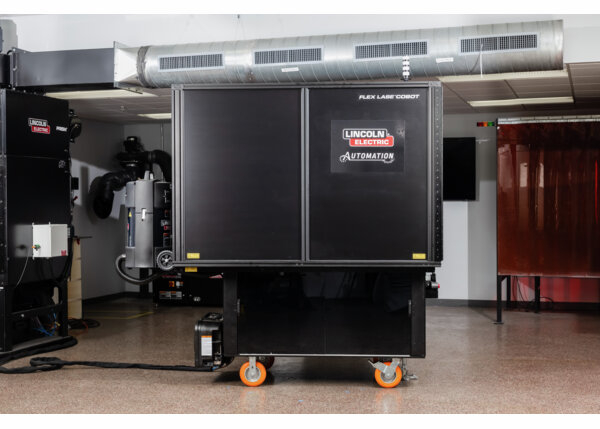

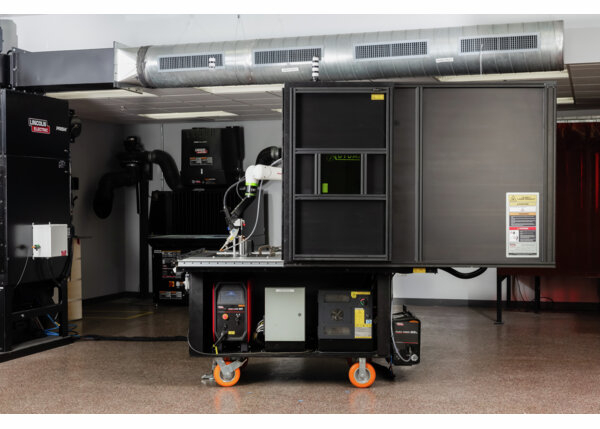

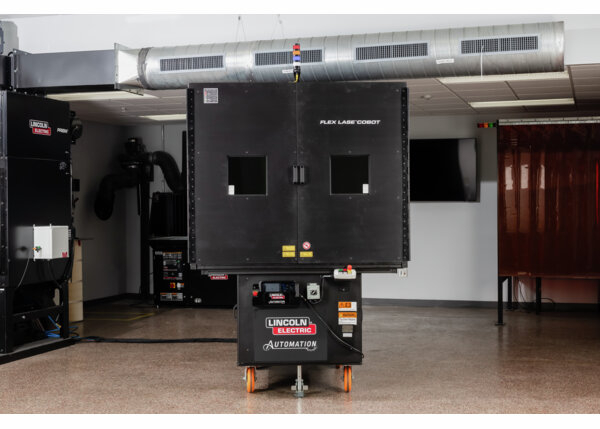

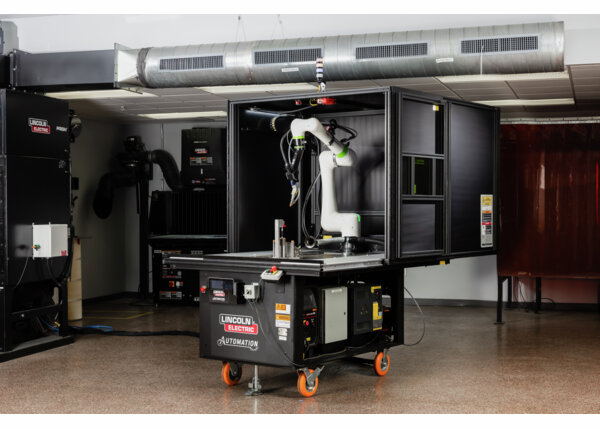

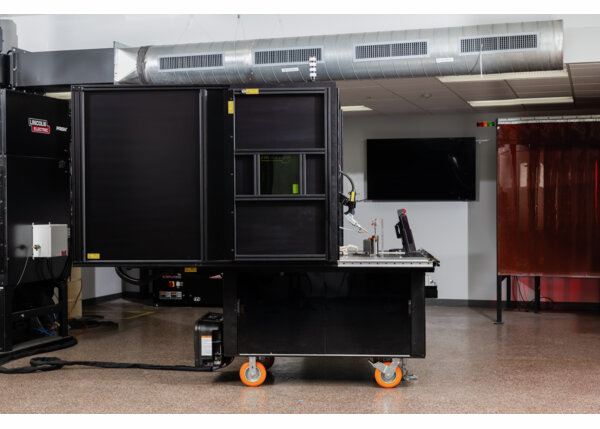

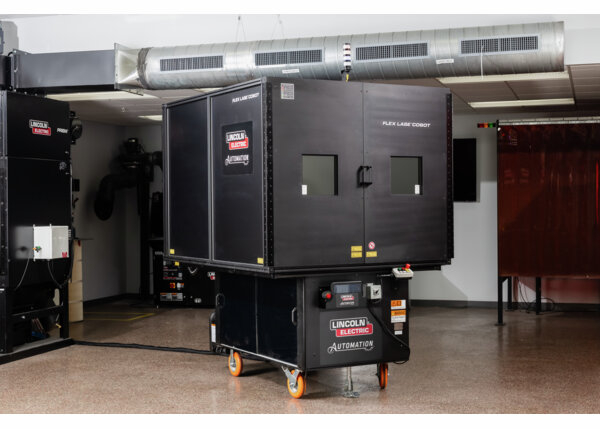

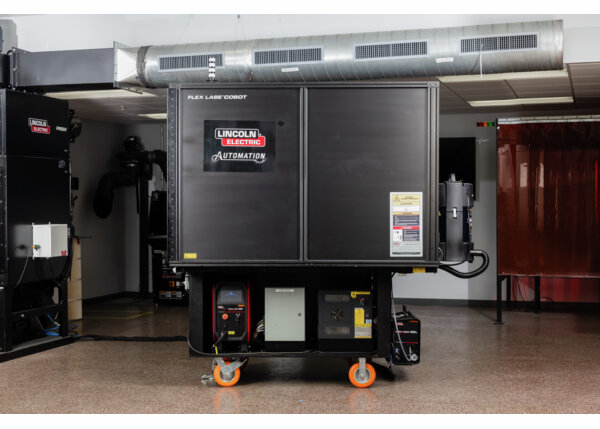

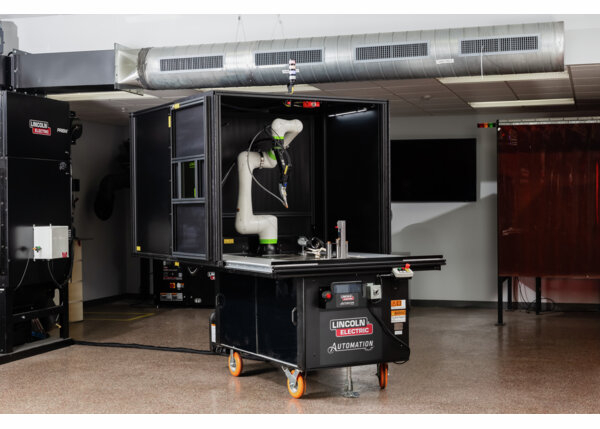

- Cart & Enclosure - The industrial robotic cart system is designed for welding small to medium-sized parts that do not require rotation or positioning equipment. The cart wheels allow you to conveniently move the system. Collaborative force sensors built directly into the robot remove the need for traditional sensors and fencing, without reducing safety to operators (compliant to RIA TR R15.606). The cart-mounted enclosure features a large front opening and a sliding top section that provides clear access for programming from three sides.
Specifications:
» CDRH Class 1 Laser Enclosure (with two laser-rated front viewing windows)
» 270° hinge double doors that fold into the enclosure sides for highly versatile access
» Work Zone Dimensions: 46" x 48"
» Tooling Tabletop Payload: 500lbs
» Cart & Enclosure Dimensions: 114" L x 61" W x 88" H (with enclosure open)
» In-enclosure overhead work lighting
- X-Tractor® Mini fume extractor - A portable, high vacuum, 108 SCFM welding fume extractor for nozzle or fume gun fume extraction at the source. It offers multi-stage filtration including HEPA Filtration as standard.
Specifications:
» AC 115V Single Phase, 50 Hz
» 26A Input Current @ Rated Output
» Output Range: 200 – 2000W
» Includes EN 20 Nozzle
o Funnel-shaped end
o Bendable length
o Magnetic stand
