DETAILS

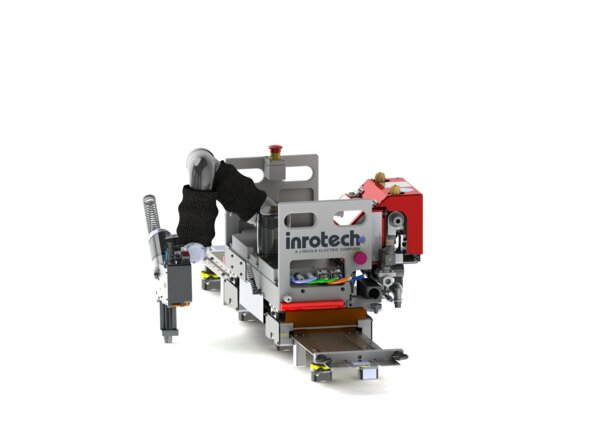

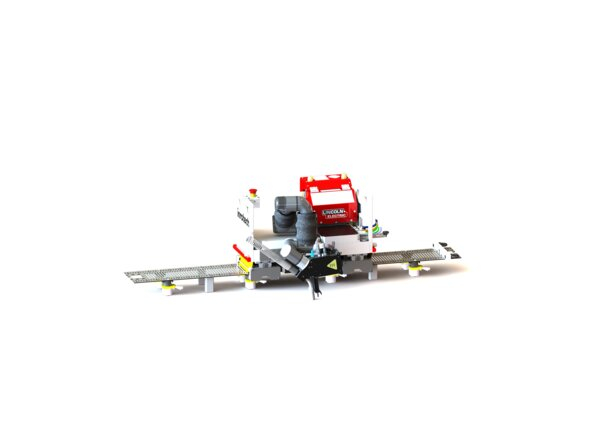

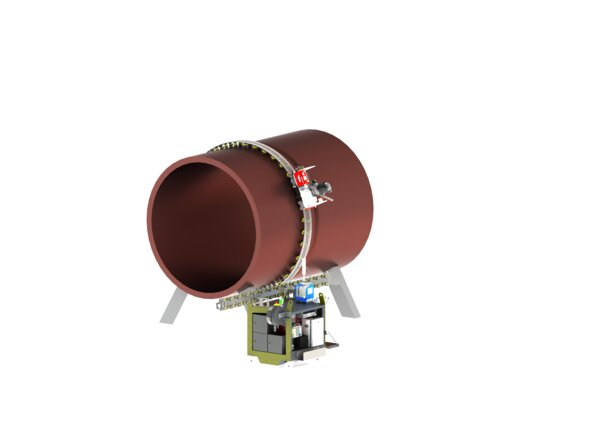

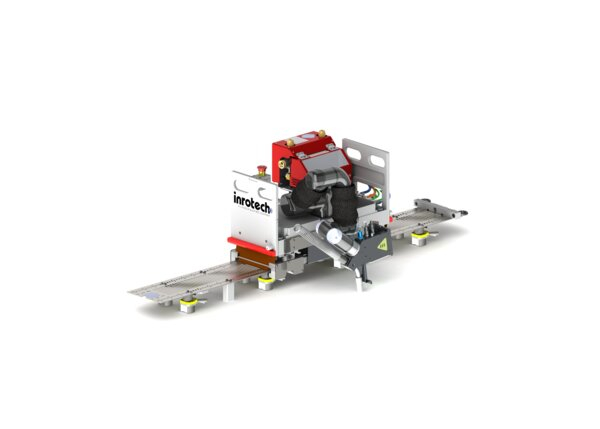

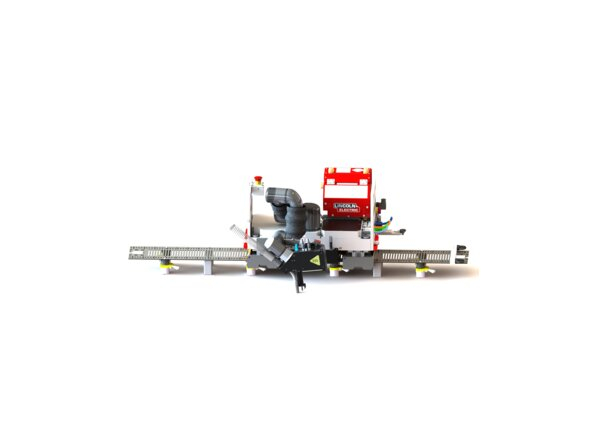

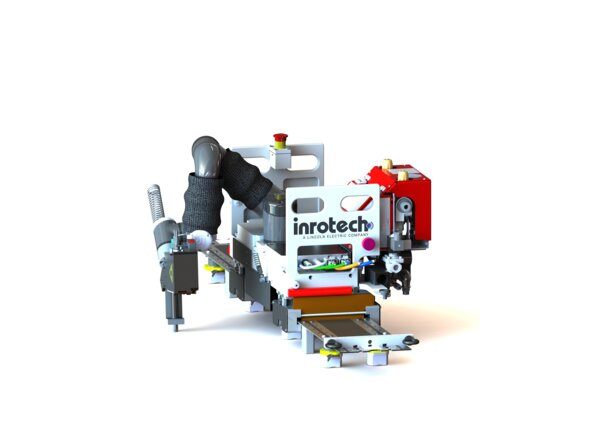

The Inrotech-Crawler system is compact yet powerful, designed for a wide range of welding applications, both on-site and in fabrication environments. Despite its small footprint, the system offers the same, and in some areas even superior, capabilities as full-size robotic welding systems.
Features
- Inrotech-WeldLogic® Technology
- User-Friendly Interface
- Sensor-Integrated System
Disclaimers
Service Information
What's Included
- UR3® CB3 robot
- UR3 CB3 controller
- Lincoln Electric® Power Wave® R450 power source
- Lincoln Electric Cool Arc® 50 water cooler
- Lincoln Electric AutoDrive® 4R100 wire feeder
- ABICOR BINZEL® wire feeder SmartBooster
- Inrotech-WeldLogic® software
- Micro-Epsilon™ 2D line scanner
- DINSE® torch cleaning station
- Secomea® SiteManager IoT gateway
Specifications
Global Attributes
| System Type | Robotic Welding System |
| Axes for Part Rotation | 0 |
| Number of Work Zones | 1 |
| Industry/Application | Shipbuilding, Heavy Material, Large Plates, Large Pipes, Curved Substrates, Hydro Power |
| Overall Footprint Width in (mm) | 120 (3000) |
| Overall Footprint Depth in (mm) | 20 (500) |
| Assembly Required | No |
| Crane Access | Yes |
| Doweled Robot Mounts | No |
| Robot Programming Training Included | No |
| ANSI/RIA Compliant | Yes |
| Sensor Protected Work Zones | No |
| Sensor Interlocked Access Points | No |
| Laser Area Scanners | No |
| Fanuc Compatability | No |
| ABB Compatability | No |
| Yaskawa Motoman Compatability | No |
| Kuka Compatability | No |
| Fume Extraction Equipment | Yes, recommended add-on |
| Tooled/Turnkey System | Yes |
| Multi-Robot Configurations | No |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | No |
| Weld Gas Distribution Station | No |
| Weld Gas Flow Monitor | Yes |
| Pneumatic Distribution Station | Yes |
| Wire Detect Sensors | No |
| Customization Available | Yes |
| System Weight lb (kg) | 1206 (547) |
Application
| Typical Application | Robotics Shipbuilding |
