DETAILS

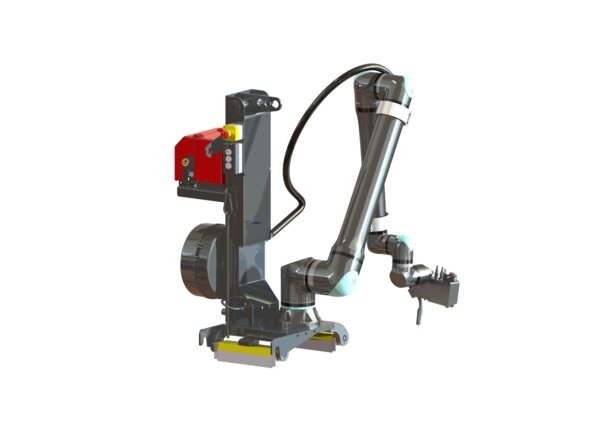

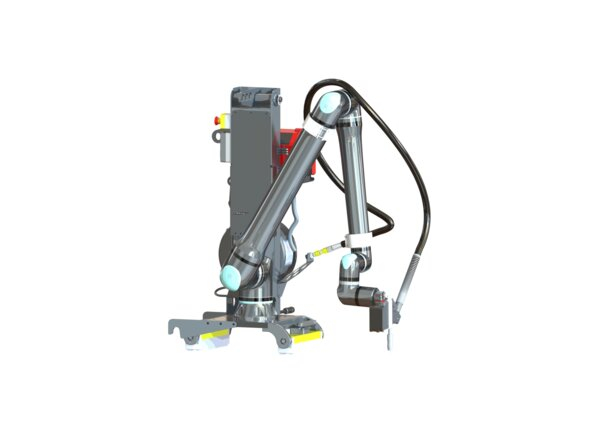

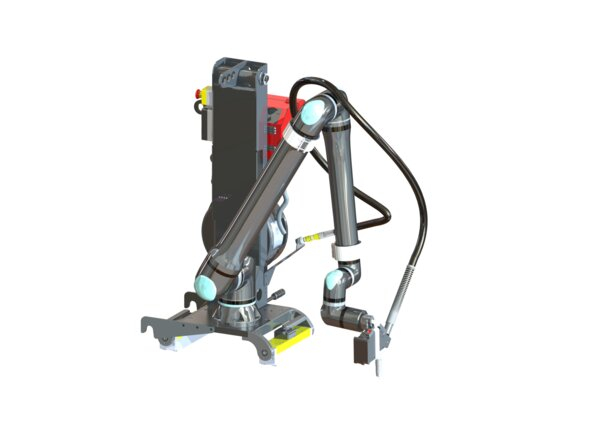

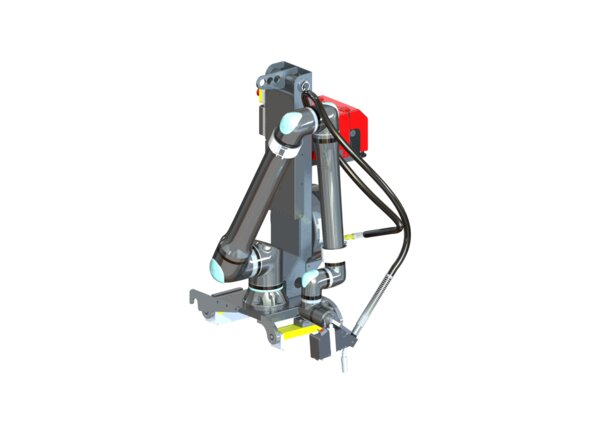

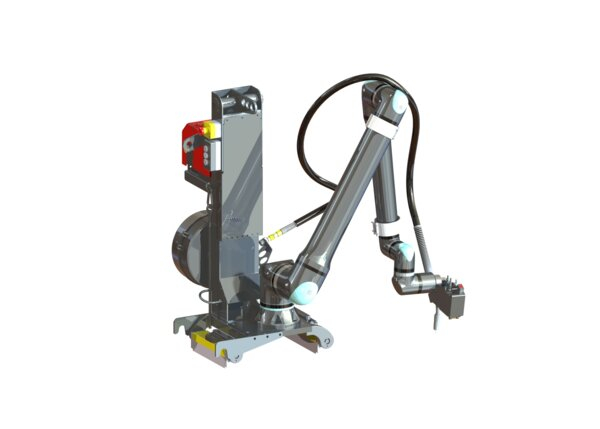

The Inrotech-Groovit™ system is a mobile robotic welding system designed to be manually positioned at the required welding location. The system consists of a UR8 Long industrial robot mounted on a magnetic base, allowing the robot to be securely fixed directly onto ferromagnetic workpieces during welding operations. Equipped with the Inrotech technology platform, the Inrotech-Groovit system automatically detects and welds standard groove shapes to achieve precise, consistent results with minimal operator input.
Features
- Inrotech Technology Platform
- User-Friendly Interface
- Sensor-Integrated System
Disclaimers
Service Information
What's Included
- UR8® robot
- Lincoln Electric® Power Wave® R450 power source
- Lincoln Electric Cool Arc® 50 water cooler
- Lincoln Electric AutoDrive® 4R220 wire feeder
- Inrotech technology platform
- Micro-Epsilon™ 2D line scanner
- Secomea® SiteManager secure access gateway
Specifications
Global Attributes
| System Type | Robotic Welding System |
| Axes for Part Rotation | 0 |
| Number of Work Zones | 1 |
| Industry/Application | Heavy Fabrication |
| Overall Footprint Width in (mm) | 78.7 (2000) |
| Overall Footprint Depth in (mm) | 47.2 (1200) |
| Sweep in (mm) | 68.9 (1750) |
| Assembly Required | Yes |
| Crane Access | Yes |
| Roll Up Door | No |
| Doweled Robot Mounts | No |
| Robot Programming Training Included | Yes |
| ANSI/RIA Compliant | Yes |
| Sensor Protected Work Zones | No |
| Sensor Interlocked Access Points | No |
| Weld Ground Isolation | No |
| Laser Area Scanners | No |
| Fanuc Compatability | No |
| ABB Compatability | No |
| Yaskawa Motoman Compatability | No |
| Kuka Compatability | No |
| Fume Extraction Equipment | Not included, recommended add-on |
| Tooled/Turnkey System | Yes |
| Multi-Robot Configurations | No |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | No |
| Weld Gas Distribution Station | Yes |
| Weld Gas Flow Monitor | Yes |
| Pneumatic Distribution Station | Yes |
| Wire Detect Sensors | No |
| Customization Available | No |
| System Weight lb (kg) | 1378 (625) |
Laser Specifications
| Optic Type | Scanning |
Application
| Typical Application | Robotics |
Warranty
| Warranty | 1 Year |
