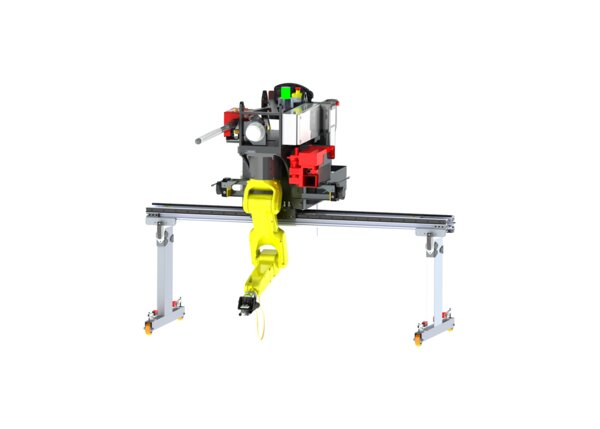

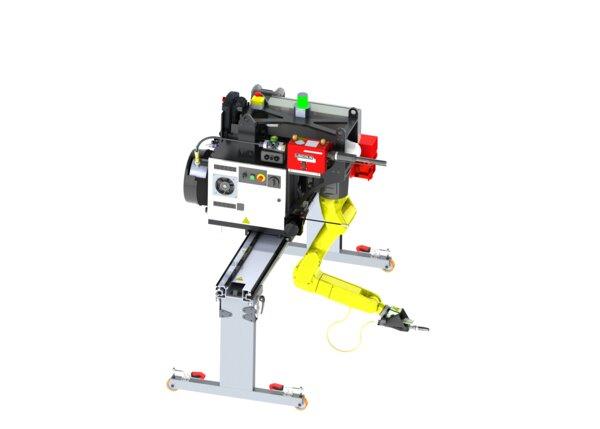

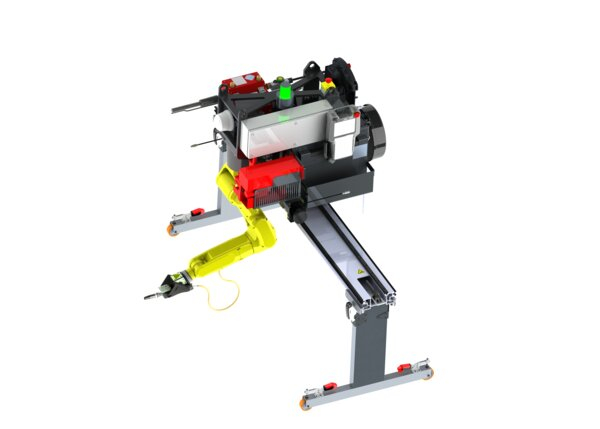

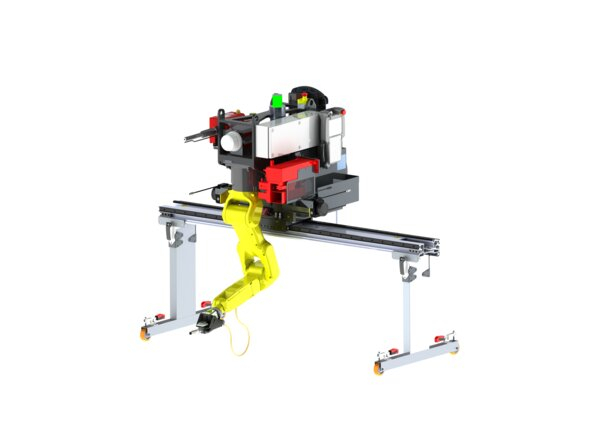

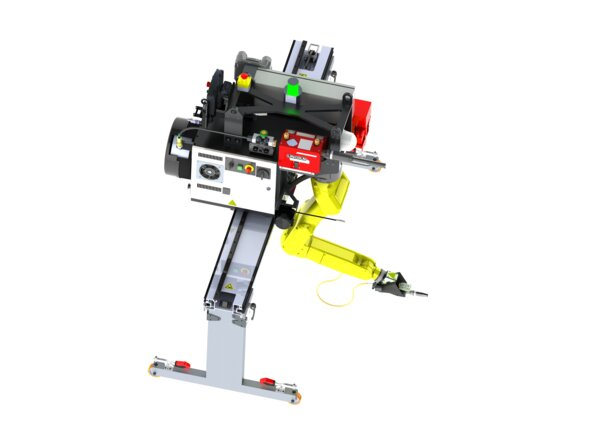

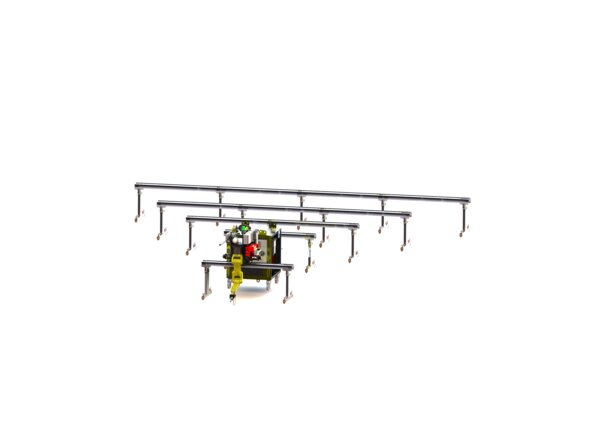

The image shown is for representation purposes only and may not reflect the actual product.
DETAILS
The Inrotech-Classic system is both highly adaptable and user-friendly for the shipbuilding industry. It helps reduce the need for CAD drawing transfers, programming, teach-in routines, macro selection, or other complex functions commonly performed by skilled operators. As a fully mobile unit, the robot can be easily relocated within a production environment. Designed specifically for shipbuilding, the system supports a wide range of welding tasks including fillet welds in PB and PF positions, collar plates, brackets, and more.
Features
- Inrotech-SensLogic® Technology
- Smart Laser Sensing
- Human-Machine Interface
Disclaimers
Service Information
What's Included
- FANUC® LR Mate 200iD 7L robot
- FANUC R-30iB Plus controller
- FANUC servo motor
- Inrotech-Senslogic® technology
- Power Wave® R450 power source
- Thielmann® BRG-2000 D torch cleaning station with wire cutter
Specifications
Global Attributes
| System Type | Robotic Welding System |
| Axes for Part Rotation | 0 |
| Number of Work Zones | 1 |
| Industry/Application | Shipbuilding, Hatch Covers, Open Deck Assembly, Open Block Assembly, Closed Block Assembly, Offshore Pancake, Bulkheads, Web, Crane Structures, Bridge Structures |
| Overall Footprint Width in (mm) | 79 (2000) |
| Overall Footprint Depth in (mm) | 63 (1600) |
| Assembly Required | No |
| Crane Access | Yes |
| Doweled Robot Mounts | No |
| Robot Programming Training Included | No |
| ANSI/RIA Compliant | Yes |
| Sensor Protected Work Zones | Yes |
| Sensor Interlocked Access Points | No |
| Laser Area Scanners | No |
| Fanuc Compatability | Yes |
| ABB Compatability | No |
| Yaskawa Motoman Compatability | No |
| Kuka Compatability | No |
| Fume Extraction Equipment | Yes, recommended add-on |
| Tooled/Turnkey System | Yes |
| Multi-Robot Configurations | No |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | Yes |
| Weld Gas Distribution Station | No |
| Weld Gas Flow Monitor | Yes |
| Pneumatic Distribution Station | Yes |
| Wire Detect Sensors | No |
| Customization Available | Yes |
| System Weight lb (kg) | 1323 (600) |
Application
| Typical Application | Robotics Shipbuilding |
