The image shown is for representation purposes only and may not reflect the actual product.
DETAILS

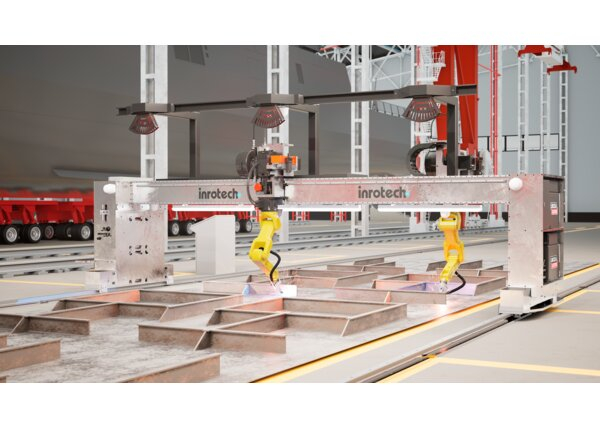

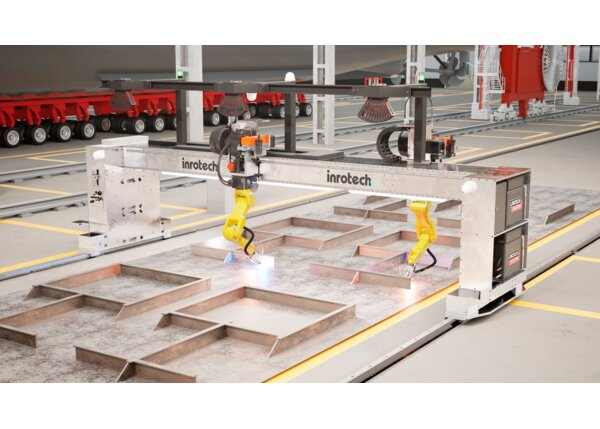

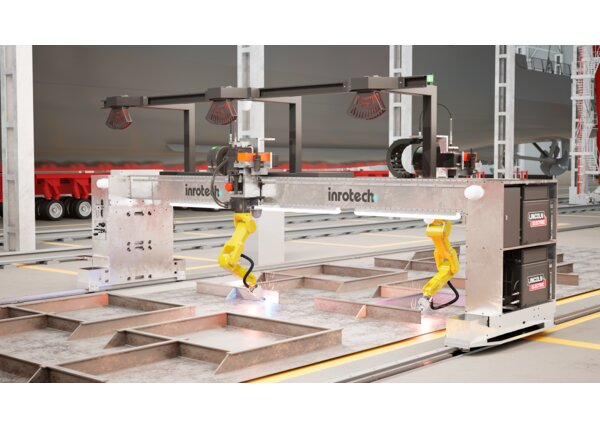

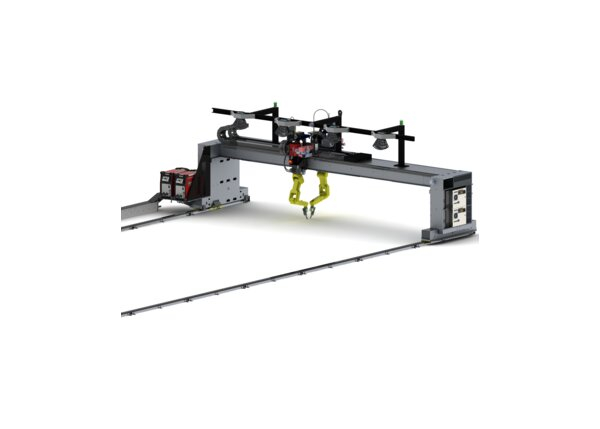

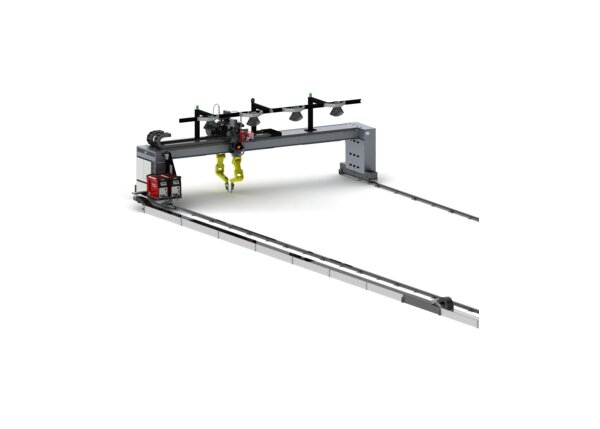

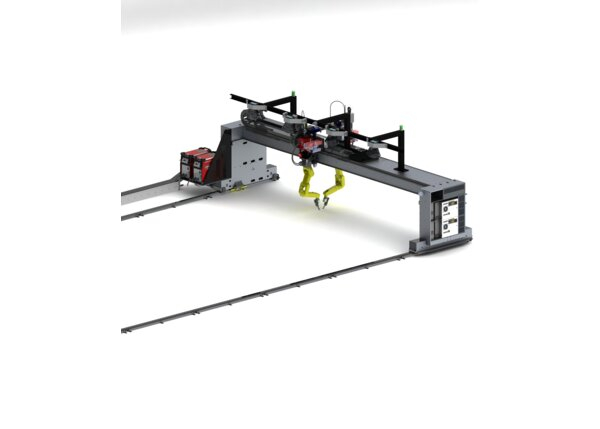

The Inrotech-MicroTwin™ system is a fully automated dual robotic welding solution engineered for fast, precise welding of micro, mini panels, sub-assemblies, and T-beams. Designed to reduce cycle times and eliminate manual programming, the system helps deliver consistent weld quality, operational efficiency, and scalable throughput for manufacturers in shipbuilding and heavy industries.
Features
- Inrotech-SensLogic® Technology
- Smart Laser Sensing
- Human-Machine Interface
Disclaimers
Specifications
Global Attributes
| System Type | Robotic Welding System |
| Axes for Part Rotation | 0 |
| Number of Work Zones | 1 to 4 |
| Industry/Application | Shipbuilding |
| Overall Footprint Width in (mm) | 295 (7500) |
| Overall Footprint Depth in (mm) | 79 (2000) |
| Span in (mm) | 236 (6000) |
| Fixed Table Work Envelope in (mm) | n/a |
| Turntable Diameter in (mm) | n/a |
| Tool Bed Length in (mm) | n/a |
| Tool Diameter in (mm) | n/a |
| Payload Per Zone lb (kg) | n/a |
| Assembly Required | No |
| Roll Up Door | No |
| Robot Programming Training Included | Yes |
| ANSI/RIA Compliant | Yes |
| Sensor Protected Work Zones | Yes |
| Sensor Interlocked Access Points | Yes |
| Flash Barrier Type | Fixed |
| Laser Area Scanners | No |
| Fanuc Compatability | Yes |
| ABB Compatability | No |
| Yaskawa Motoman Compatability | No |
| Kuka Compatability | No |
| Fume Extraction Equipment | Not included, recommended add-on |
| Tooled/Turnkey System | Yes |
| Multi-Robot Configurations | Yes |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | Yes |
| Weld Gas Distribution Station | No |
| Weld Gas Flow Monitor | Yes |
| Pneumatic Distribution Station | Yes |
| Wire Detect Sensors | No |
| Customization Available | No |
| System Weight lb (kg) | 6-meter model: 5512 (2500) |
Application
| Typical Application | Robotics |
